    Universal Parallel Gap Bed Horizontal Lathe Machine For Non Ferrous Metal Parts

    Ask Lasest Price
    Brand Name : Baishun
    Model Number : CW6163
    Certification : ISO9001; CE
    Price : negotiation
    Payment Terms : D/A, L/C, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 30 set/month
    Delivery Time : In stock
    • Product Details
    • Company Profile

    Universal Parallel Gap Bed Horizontal Lathe Machine For Non Ferrous Metal Parts

    Best prices universal parallel gap bed lathe turning machine for sale


    Product Application


    1. The lathe bed by integrally cast lathe bed structure, internal steel board layout is reasonable, has high rigidity, machine adopts the 250 casting iron, equipment with high frequency quenching, guide rail mill grinding process, stable machine tools with high precision, high rigidity, strong cutting.

    2. Sliding box has a fast moving structure, single handle visualization operation;Spindle and reversing shift to the brake and the user can choose the hydraulic control or manual control machinery.

    3. The machine tool rest with single motor turning cylinder, you can also use the tool rest and longitudinal feed turning cone length.The machine it is suitable for large and medium-sized of steel and non-ferrous metal parts processing, can be cylindrical turning, inner hole, face cutting, drilling, boring and nesting.

    4. The machine tool power, strong rigidity, spindle speed range is wide, suitable for strong or high speed cutting.Of spindle brake and shift to the hydraulic control, sensitive and reliable braking available button without a stop conversion speed, the forced lubrication with pressure oil in the cabinet of the head of a bed, spindle speed range has several kinds, for user to choose from.

    5. Has security structure in the sliding box, which can prevent damage of lathe due to overload.


    Gap bed lathe turning machine Specification:


    ITEM

    UNIT

    CW6180

    CAPACITIES

    Swing over bed

    mm

    800

    Swing over carriage

    mm

    480

    Max.length of workpiece

    mm

    1500 2000 3000 4000 5000 6000

    Max.turning length

    mm

    1350 1850 2850 3850 4850 5850

    Pan of guideway

    mm

    600

    SPINDLE

    Spindle nose


    C11

    Spindle bore

    mm

    100

    Taper hole of spindle


    1:20/120

    Range of spindle speeds

    r/min

    6-750: 10-775

    No.of spindle speeds


    18/6

    FEED

    Longitudinal and cross

    r/min

    64;0.1~24.32

    Cross/long longitudinal feed


    1/2

    Screw pitch of leadscrew

    mm

    12

    No. and range of metric thread

    mm

    50;1~240

    No. and range of inch thread


    26;14~1

    No. and range of module thread

    mm

    53;0.5~120

    No. and range of dia. thread


    24;28~1

    Rapid traverse speed

    mm/min

    4000

    TURRET

    Max.travel of cross slide

    mm

    500

    Max.travel of top slide

    mm

    200

    Section of tool shank

    mm

    32

    TAILSTOCK

    Dia. of tailstock

    mm

    100

    Travel of tailstock quill

    mm

    250

    Taper hole of tailstock quill


    Morse6

    OTHERS

    Main motor power

    kw

    11

    Length

    mm

    3670 3985 5165 6220 7400 8260

    Width

    mm

    1730

    Height

    mm

    1450


    Standard Accessories:


    Centers
    Steady rest
    Follow rest
    4-jaw chuck
    Cooling system
    Lubricant system
    Work Lamp
    Tool Box
    Foundation bolts
    Leveling iron pads
    Chuck wrench

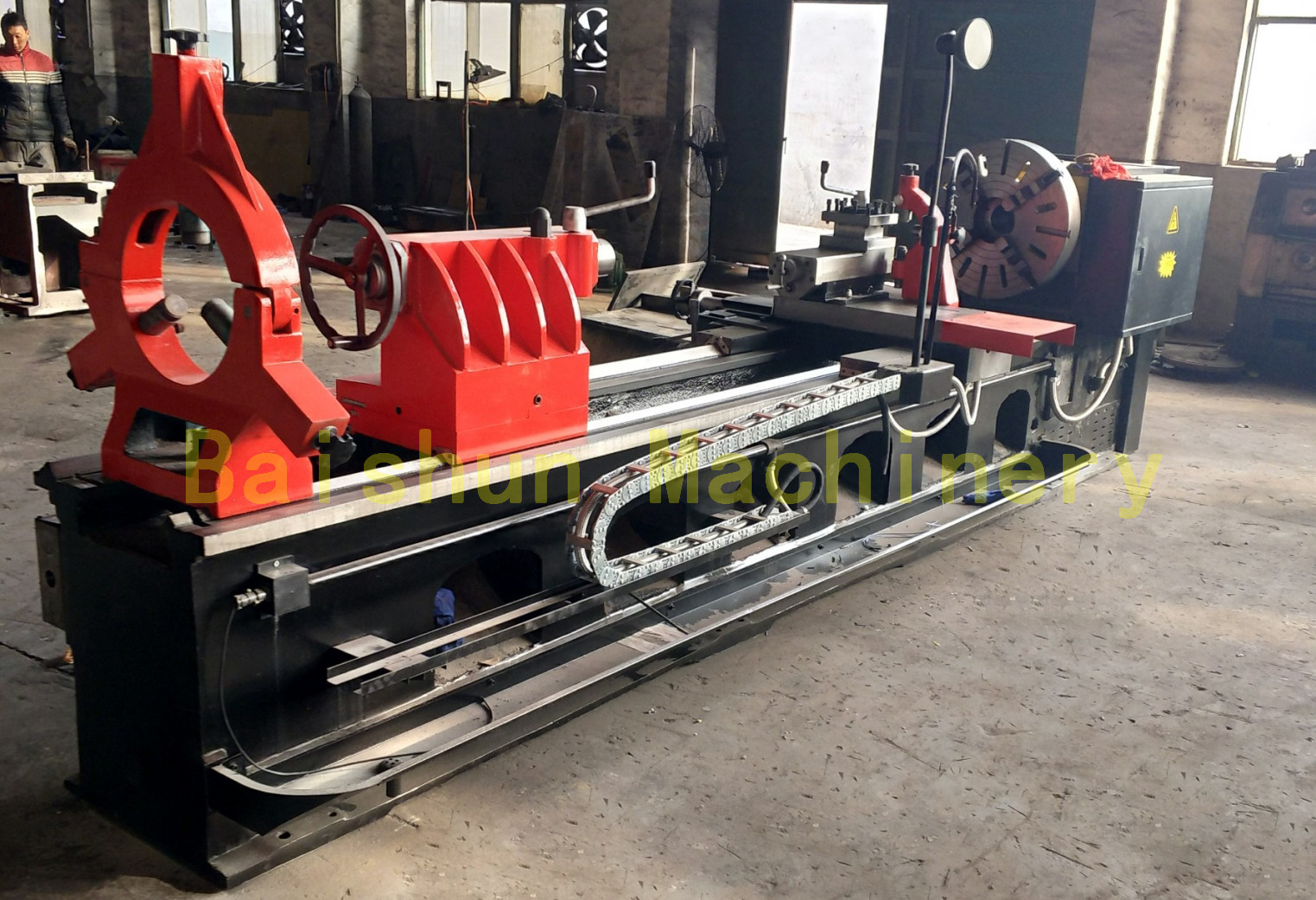

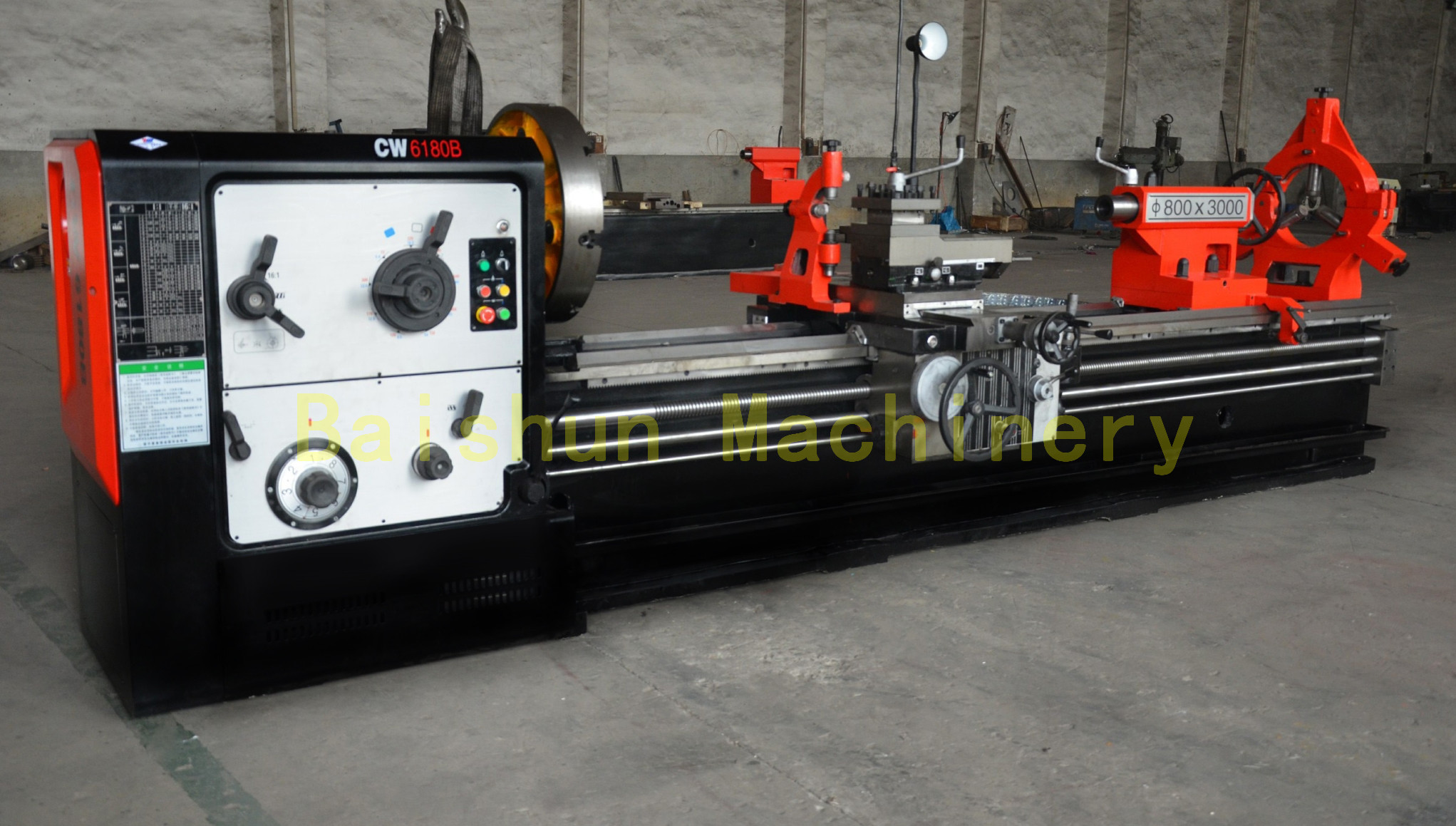

    Universal Parallel Gap Bed Horizontal Lathe Machine For Non Ferrous Metal PartsUniversal Parallel Gap Bed Horizontal Lathe Machine For Non Ferrous Metal PartsUniversal Parallel Gap Bed Horizontal Lathe Machine For Non Ferrous Metal Parts


    Our Services


    1. We will provide all the machines for the complete production according to customer's requirements.

    2. We will provide complete service for factory layout and other information to help buyer.

    3. We will provide good service for the machine installation and training, until the customers can operate the machine and make stable production.

    4. Except one year quality guarantee, we will provide after-selling service for all the life.

    5. For long-term cooperation, we always provide good quality, good price and good service to customer.
