    Heavy Duty Horizontal Lathe Machine With CNC Control 2000mm Diameter

    Ask Lasest Price
    Brand Name : Baishun
    Model Number : CK61200
    Certification : ISO9001; CE
    Price : negotiation
    Payment Terms : D/A, L/C, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 30 set/month
    Delivery Time : In stock
    • Product Details
    • Company Profile

    Heavy Duty Horizontal Lathe Machine With CNC Control 2000mm Diameter

    High Quality turning lathe CK61200 CNC Heavy Duty Horizontal Lathe Machine


    Product Application


    This is CNC heavy-duty horizontal lathe, which is not only apply for different materials of shaft parts, cylindrical and disc-shaped parts, but also widely used for boring, car boring inside and outside the cone, and a variety of threads. The lathe has advantages such as best adaptability, high efficiency, high precision and high quality.


    Heavy Duty Lathe Machine CK61200 Specification:



    ITEM

    UNIT

    CK61200

    CAPACITIES

    Swing over bed

    mm

    2000

    Swing over carriage

    mm

    1600

    Max.length of workpiece

    mm

    4000~20000

    Max.weight of workpiece

    t

    32

    Form of bed guideway


    3 GUIDEWAY

    Span of guideway

    mm

    1600

    SPINDLE

    Power of spindle

    kw


    Center cone apex angle

    °

    75

    Spindle speed


    STEPLESS

    Range of spindle speed

    r/min

    0.8~160

    Face chuck Dia.

    mm

    1600/1800

    Max.torque of face chuck

    knm

    80

    FEED

    Range of cross feed

    mm/min

    1~2000

    Travel of cross

    mm

    725

    Range of longitudinal feed

    mm/min

    1~4000

    Travel of longitudinal

    mm

    4000~20000

    TURRET

    Turret working pistion

    mm

    V4

    Size of turret

    kn

    70X70

    Max.cutting force

    kw

    80

    Rapid of turret


    1.5

    TALSTOCK

    Dia. of tailstock

    mm

    300

    Travel of tailstovk

    mm

    300

    Taper hole of tailstock


    100/1:7

    Rapid of tailstock

    mm/min

    3000

    Rapid of sleece

    mm/min

    664

    OTHERS

    Length

    mm

    15580

    Width

    mm

    3500

    Hight

    mm

    2280

    Weight

    kg

    48000


    Standard Accessories:


    Centers
    Steady rest
    Follow rest
    4-jaw chuck
    Cooling system
    Lubricant system
    Work Lamp
    Tool Box
    Foundation bolts
    Leveling iron pads
    Chuck wrench

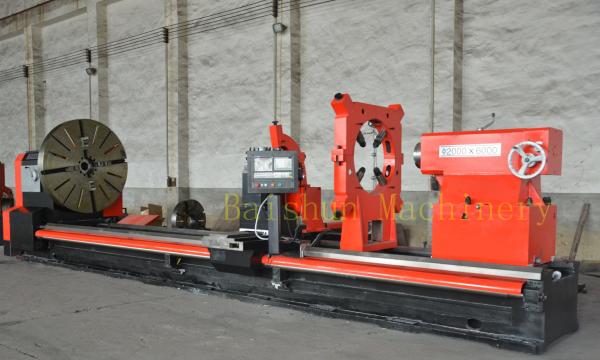

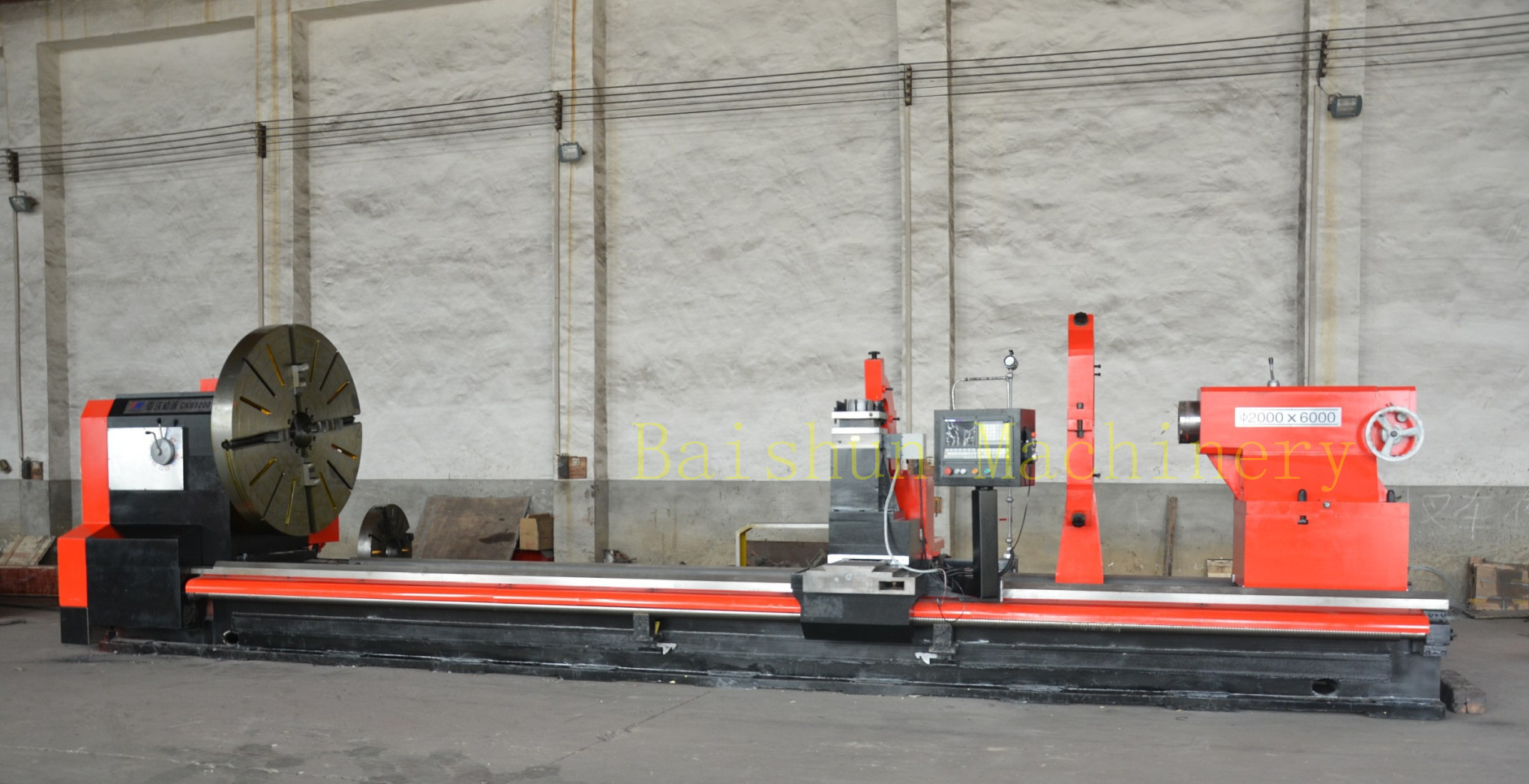

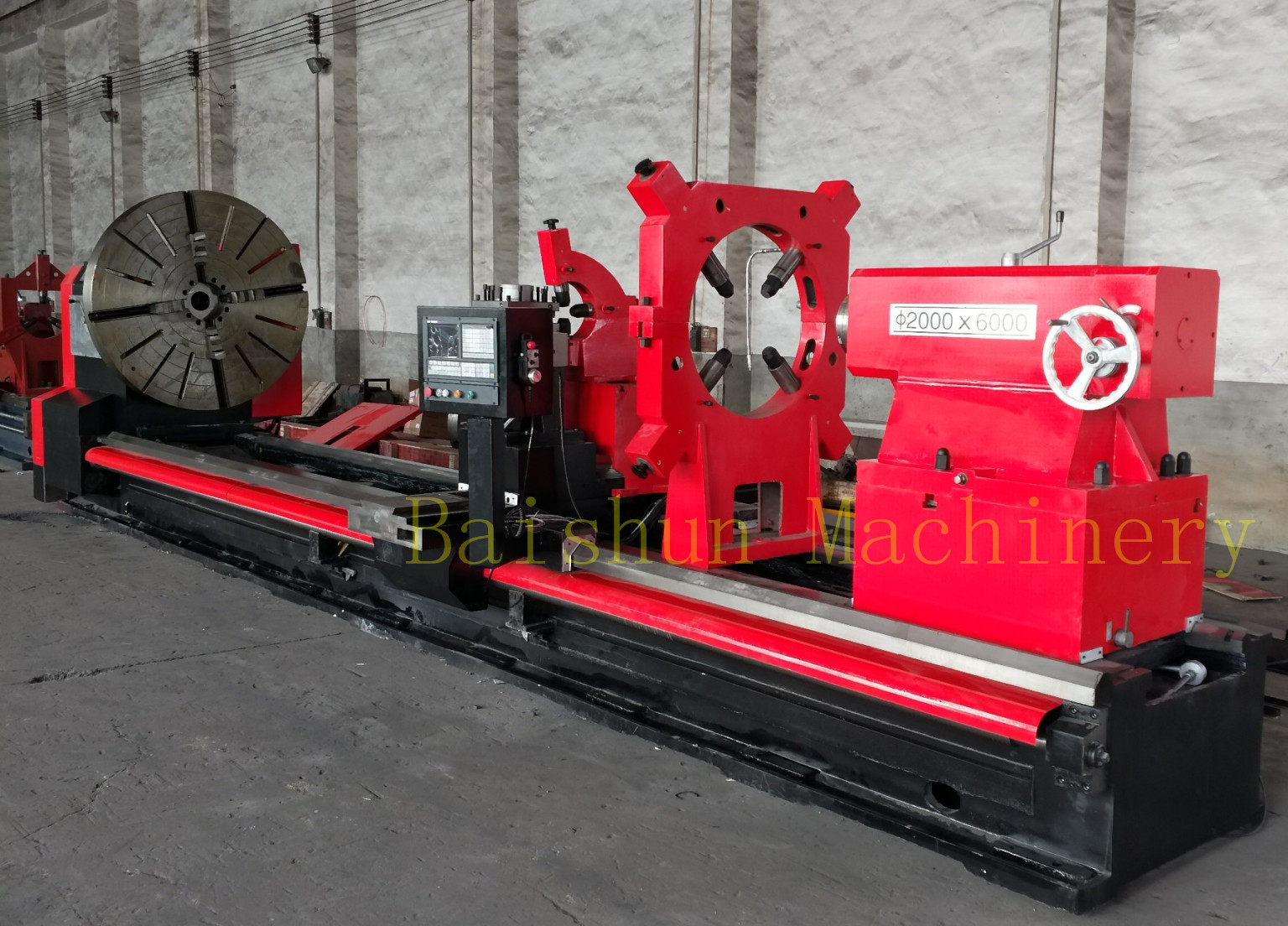

    Heavy Duty Horizontal Lathe Machine With CNC Control 2000mm Diameter
    Heavy Duty Horizontal Lathe Machine With CNC Control 2000mm Diameter

    Heavy Duty Horizontal Lathe Machine With CNC Control 2000mm DiameterHeavy Duty Horizontal Lathe Machine With CNC Control 2000mm Diameter

    Our Services


    1. We will provide all the machines for the complete production according to customer's requirements.

    2. We will provide complete service for factory layout and other information to help buyer.

    3. We will provide good service for the machine installation and training, until the customers can operate the machine and make stable production.

    4. Except one year quality guarantee, we will provide after-selling service for all the life.

    5. For long-term cooperation, we always provide good quality, good price and good service to customer.
